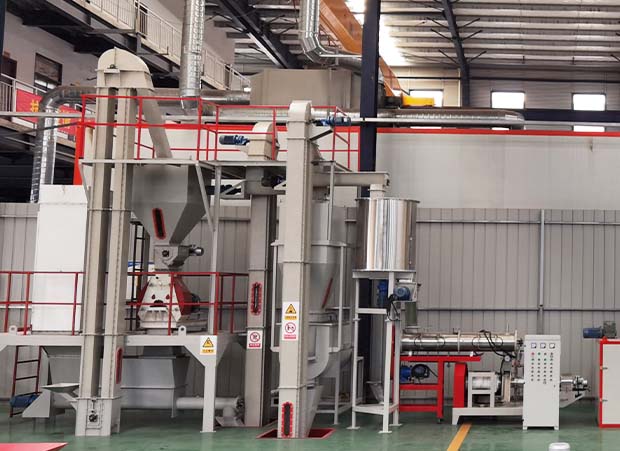

Fish Feed Production Line
Lima Feed Machinery is a comprehensive problem solver for fish feed machinery and whole fish feed pellet production line/fish feed plant engineering. Our fish feed production machine and complete sets of fish feed pellet line projects cover more than 100 countries and regions in Asia, the Middle East, Africa, Europe, Oceania, South America, etc.
Control Mode: Automatic/Semi-Automatic/Manual
CAPACITY:
1-100T/H
APPLICATION:
Fish Feed Industry
Feed Size:
Powder/Mash/ 1-12mm Pellets
24 hours to reply to technical inquiries
Applications Of Fish Feed Production Line
Fish feed production line can also be called Fish Feed Pellet Line, Fish Feed Plant, Fish Feed Mill, Fish Feed Factory, which is a feed production system composed of various fish feed equipment. This system can produce pellet feed, powder feed, premix, crumbled feed, and can be customized according to the processing needs of different customers and workshops of different sizes.
LIMA fish feed production lines can be used to process feed pellets such as catfish, tilapia, shirmp, dogs, cats, etc. From raw materials to feed, we provide a full set of fish feed plant machinery and feed production process solutions, and responsible for all phases of fish feed production line project design, budget, fish feed making equipment and material procurement, construction, trial operation, and acceptance for fish feed plants or fish farms.
fish feed production
Fish Feed Production
fish feed production
Shrimp Feed Production
pet food production
Pet Food Production
Sample Feed of Aquaculture Feed Pet Food production line
Fish feed pellet machines using for aquaculture feed and pet food. For example: fish, shrimp, dogs, cats, and so on. Just change mould can make different size and shape. finished pellet size from 0.8mm-12mm, suitable for different stage of fish.
0.8mm fish feed
Shrimp Feed
0.8mm
1mm fish feed
Fish Feed
1mm
1.5mm fish feed
Fish Feed
1.5mm
2mm fish feed
Fish Feed
2mm
3mm fish feed
Fish Feed
3mm
4mm fish feed
Fish Feed
4mm
5mm fish feed
Fish Feed
5mm
6mm fish feed
Fish Feed
6mm
dog food
Dog Food
sample
dog food
Dog Food
sample
dog food
Dog Food
sample
dog food
Dog Food
sample
cat food
Cat Food
sample
cat food
Cat Food
sample
cat food
Cat Food
sample
Contact Us
Raw materials for fish feed production
The raw material is easy to find, like corn meal, wheat bran, soybean meal, rapeseed meal, bone meal, fish meal, and so on...
corn
Corn Kernel
wheat
Wheat Kernel
Rapeseed
Rapeseed Kernel
soybean
Soybean Kernel
fish meal
Fish Meal
bone meal
Bone Meal
Contact Us
Types of Fish Feed production Line
There is no standard size all customized according to the actual fish feed plant space.

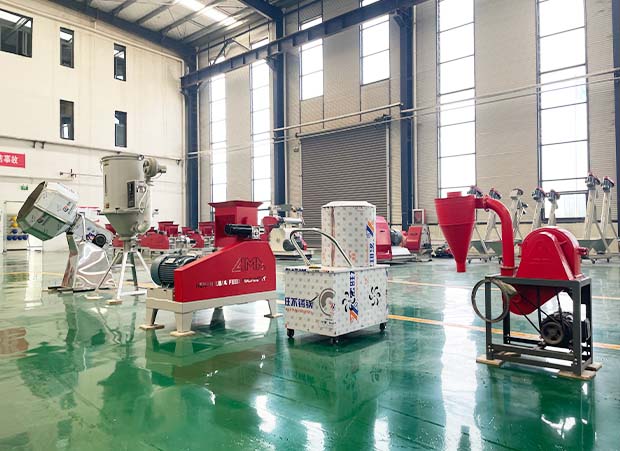

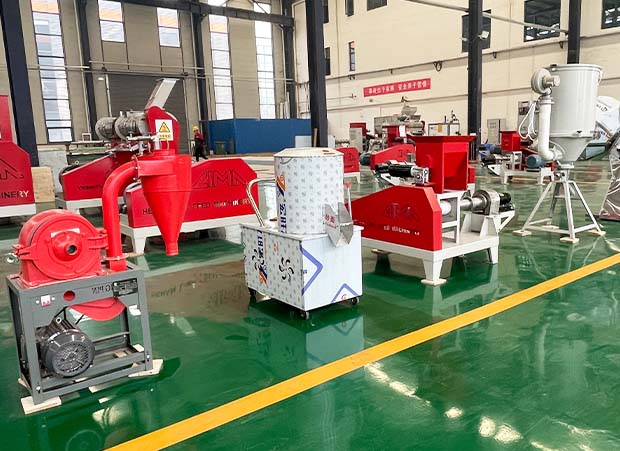

small fish feed production line
small floating fish feed production line
fish feed extruder

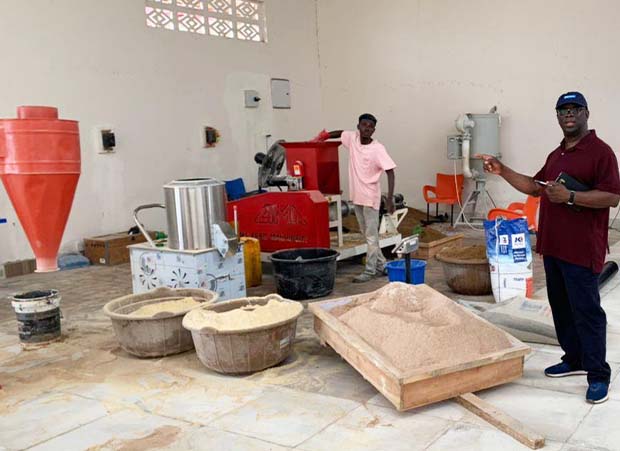

small fish feed production line case
small fish feed processing line
small fish feed production line
small floating fish feed production line
fish feed extruder
small fish feed production line case
small fish feed production line

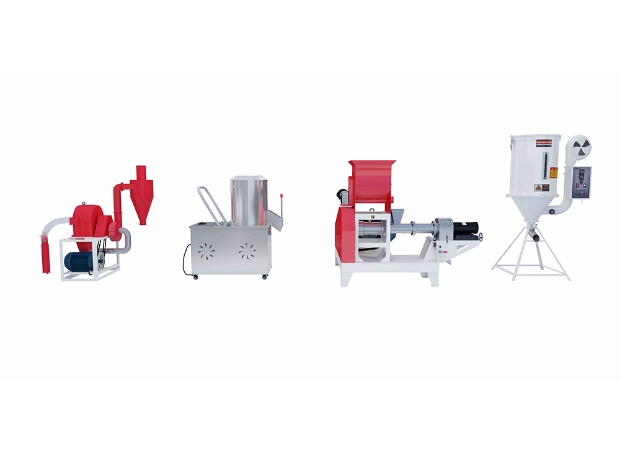

40-300kg/h Farm use Aquatic/pets feed simple production line
Capacity 40-300kg/h
Power 16-68kw
Range of application Fish farm or small feed shop
Product advantages Cheap and simple operation,Easy to move,small size,Low transportation cost,pellet size could be chosen from 1-12mm
Process flow 1.Crusher -2.Mixer -3.Feed pellet extruder -4.Dryer
Size for whole line 5×2×3m
Workers requirments 2 people
Shipment requirments Wooden case package by LCL (4-7CBM)
I'm interested in this model

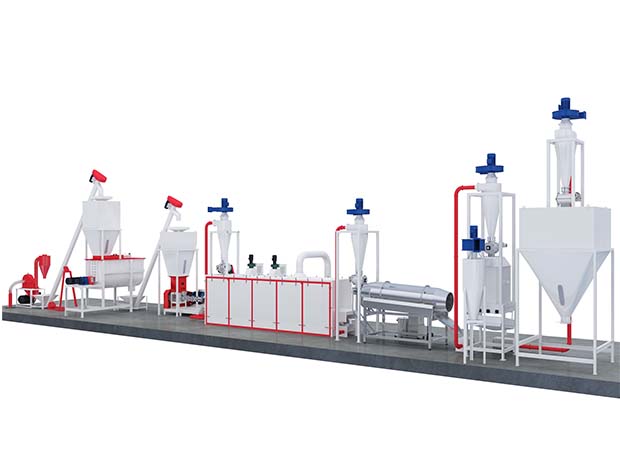

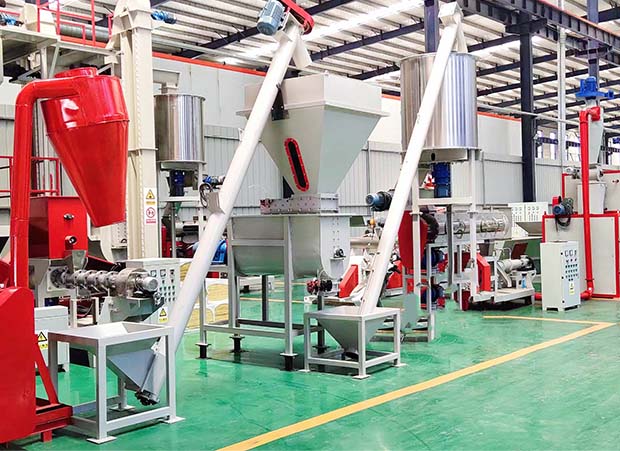

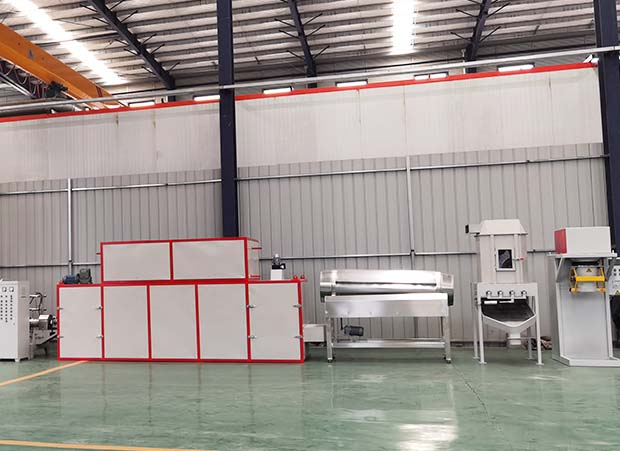

fish feed production line
lima fish feed processing line

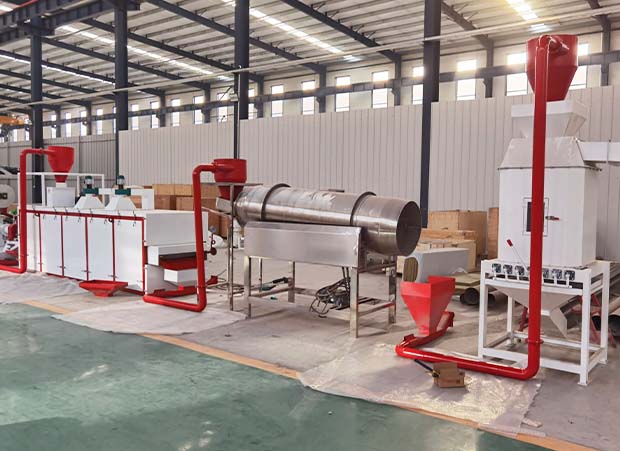

lima floating fish feed processing line
lima floating fish feed production line
/lima fish feed pellet line
lima fish feed production line
lima fish feed processing line
lima floating fish feed processing line
lima floating fish feed production line
/lima fish feed pellet line
200-800kg/h Commercial use Aquatic/pets feed production line
Capacity 200-800kg/h
Power 86-152kw
Range of application Good for small/medium commerical Aquatic /pets feed factory,big farm
Product advantages Stable output,high efficiency,continuous work,labor saving, can pack directly,pellet size could be chosen from 1-12mm
Process flow 1.Crusher -2.Conveyor -3.Mixer -4. Conveyor -5.Feed pellet extruder-6.Air conveyor -7.Dryer -8.Air conveyor -9.Seasoning machine-10.Air conveyor -11.Cooler -12. Air conveyor -13. Finished product silo
Size for whole line 25×3×6m
Workers requirments 2-3 people
Shipment requirments 40ft container
I'm interested in this model

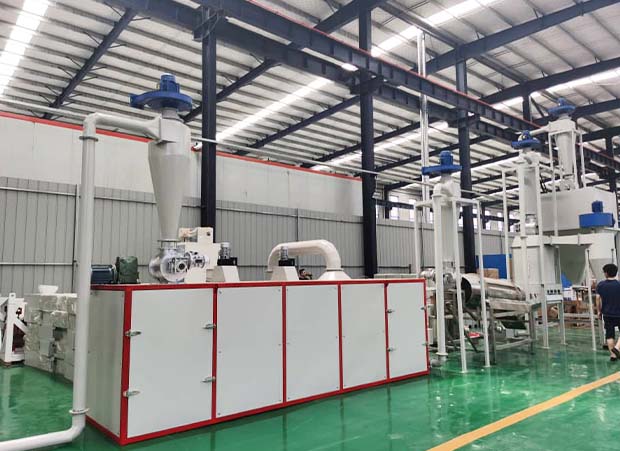

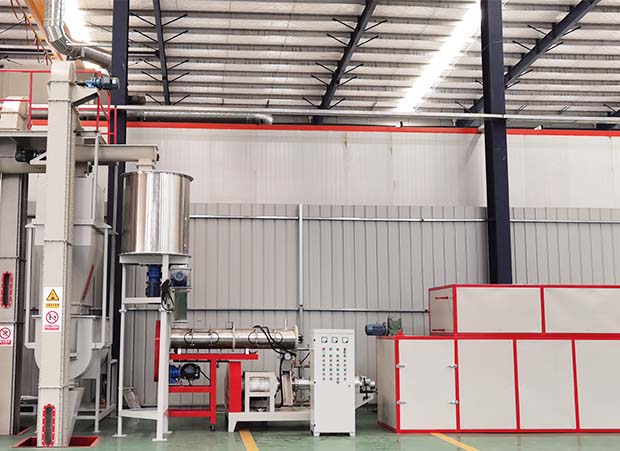

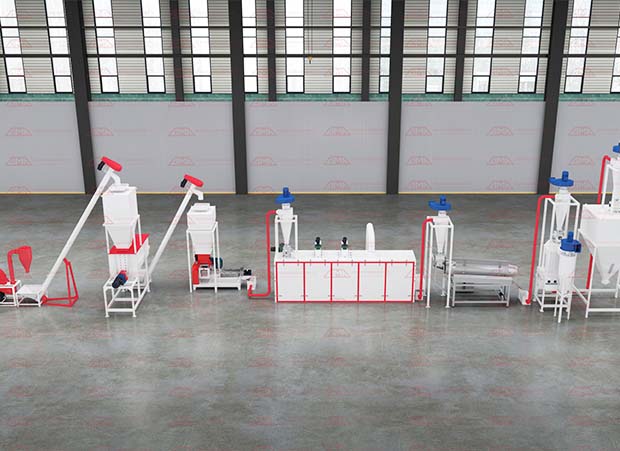

floating fish feed pellet production line

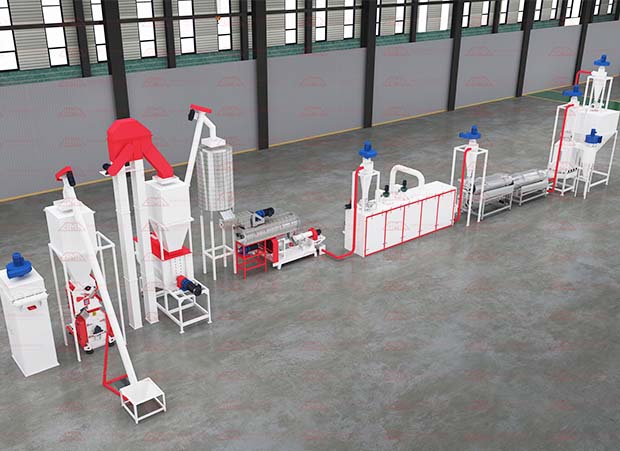

floating fish feed production machine
floating fish feed processing line
lima floating fish feed pellet line

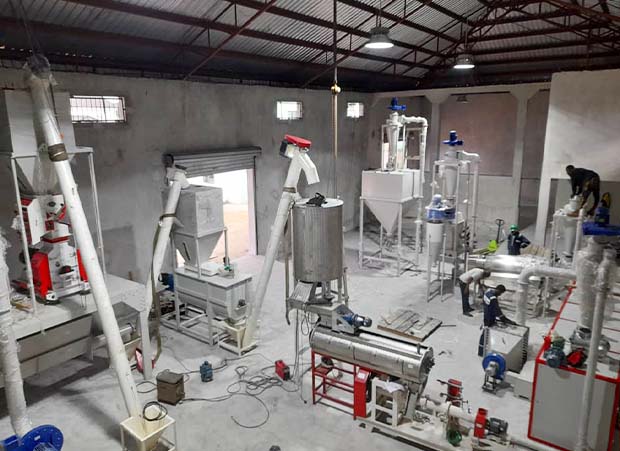

floating fish feed production line case
floating fish feed pellet production line
floating fish feed production machine
floating fish feed processing line
lima floating fish feed pellet line
floating fish feed production line case
500-2000kg/hCommercial use Aquatic/pets feed production line
Capacity 500-2000kg/h
Power 94-217kw
Range of application Good for medium/big commerical Aquatic /pets feed factory
Product advantages Long working life,make high protein feed,Stable output,high efficiency, continuous work,labor saving,can pack directly,pellet size could be chosen from 1-12mm
Process flow 1.Bucket elevator -2.Buffer bin -3.Hammer mill -4.Bucket elevator -5.Buffer bin-6.Mixer -7.Bucket elevator -8.Broken arch bin -9.Wet way feed pellet extruder-10.Air conveyor -11.Dryer -12.Air conveyor -13.Seasoning machine -14.Air conveyor-15.Cooler -16.Air conveyor -17.Finished product silo
Size for whole line Length: 35m-50m Width: 6m Height: 8m
Workers requirments 3-5 Workers
Shipment requirments 2×40ft container
I'm interested in this model

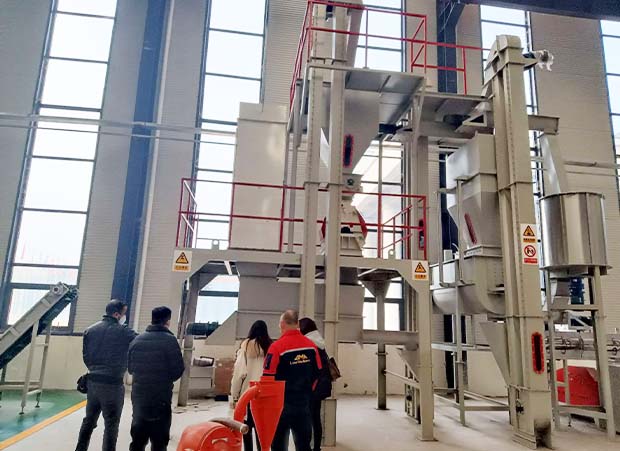

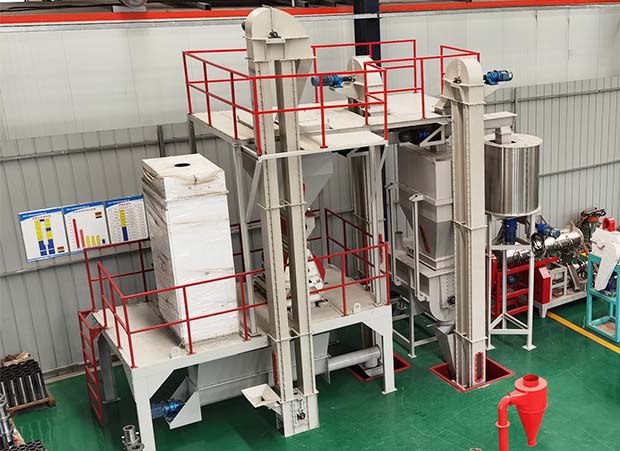

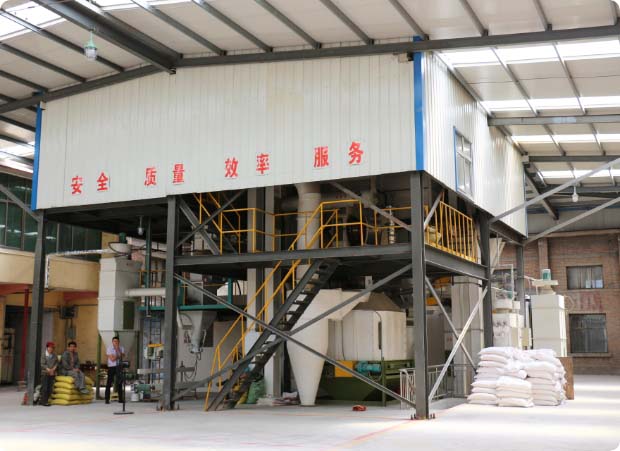

fish feed mill
fish feed plant
lima fish feed plant
fish feed facotry
floating fish feed plant
fish feed mill
fish feed plant
lima fish feed plant
fish feed facotry
floating fish feed plant
3-4ton/hCommercial use Aquatic/pets feed production line
Capacity 3-4ton/h
Range of application Suitable for large commerical Aquatic /pets feed factory
Product advantages Long working life,make high protein feed , stable output, high efficiency, continuous work, labor saving, can pack directly,pellet size could be chosen from 1-12mm
Process flow 1.Bucket elevator -2.Buffer bin -3.Impeller feeder with iron removal device-4.Hammer mill with dust collector -5.Bucket elevator -6.Buffer bin -7.Mixer-8.Bucket elevator -9.Broken arch bin -10.Wet way feed pellet extruder-11.Air conveyor -12.Dryer -13.Bucket elevator -14.Seasoning machine -15.Bucket elevato -16.Cooler -17.Bucket elevator -18.Finished product silo-19.Packing and seal machine
Size for whole line Length: 45m-50m Width: 8m Height: 10m
Workers requirments 4-6 Workers
Shipment requirments 4×40ft container
I'm interested in this model
Main Equipment of Complete Feed Pellet Production Line
The Complete Fish Feed Pellet Production Line includes the following equipment from the storage of raw materials to the packaging of the final pellets
hammer mill

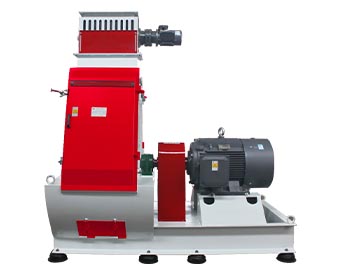

Feed Hammer Mill/Feed Grinder
It is a general-purpose product with stable performance, which is widely used in the crushing of raw materials in large and medium-sized feed factories.
Quote Now
feed mixer
Feed Mixer Machine
Feed mixer is an essential parts of the whole line. Powdery feed materials need to be mixed thoroughly in the mixer to ensure a high-quality of nutritional feed.
Quote Now

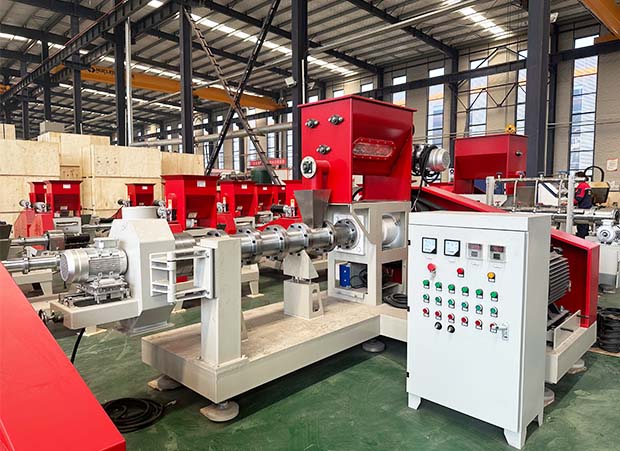

feed extruder machine

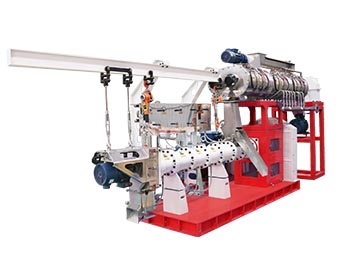

Feed Extruder Machine
Fish feed extruder is widely used for producing aquatic feed pellets and pet food. Simply adjust the feed formula to produce floating and sinking aquatic feed pellets.
Quote Now

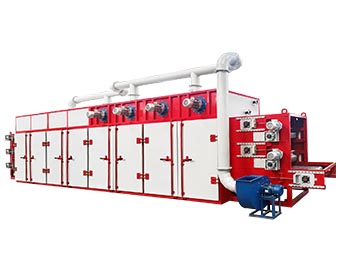

feed dryer machine
Feed Dryer Machine
Fish Feed Dryer is used to reduce the moisture content of feed pellets so that they can be stored and sold for a long time after packaging.
Quote Now
seasoning machine

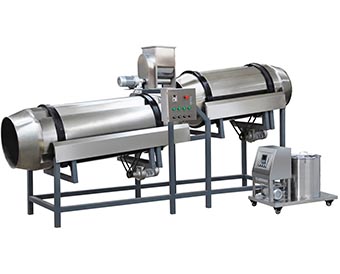

Seasoning Machine
Seasoning machine is used to spray seasoning of feed to make the feed more delicious and attractive.
Quote Now

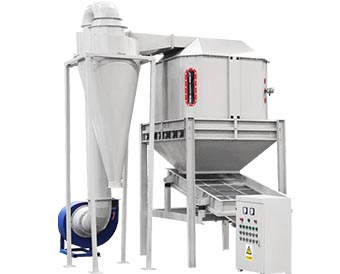

cooler
Feed Cooler Machine
Feed pellet cooler is equipment for cooling and dehumidifying the hot and humid feed pellets after granulating.
Quote Now
conveyor

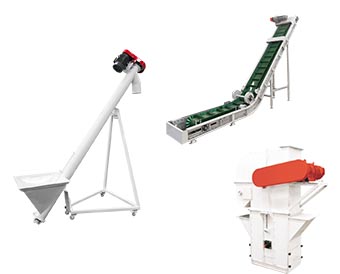

Conveyor
The conveyor is used to transport finished raw materials and feed pellets.
Quote Now

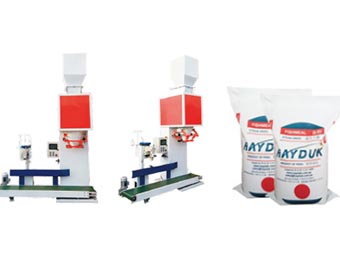

Packing and seal machine
Packing and Seal Machine
The function of packing machine is packing and sealing the dried feed pellets to ensure feed quality and freshness and facilitate transport.
Quote Now
Flow Chart Of Feed Pellet Plant
The flow chart of feed pellet production line is used for your reference, if you have any requirements, pls contact us, our technical team will customized the professional project for you.
We offer professional customization services
According to different technological requirements, various types of fish feed machinery are combined to meet customers' different fish feed manufacturing process requirements.
I need to customize

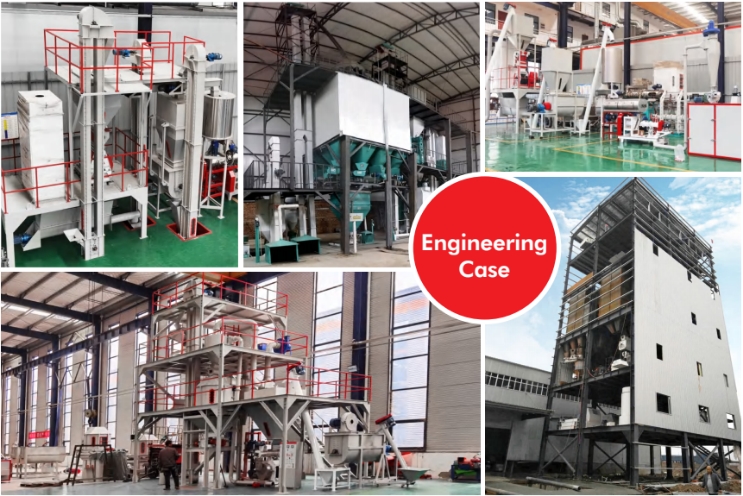

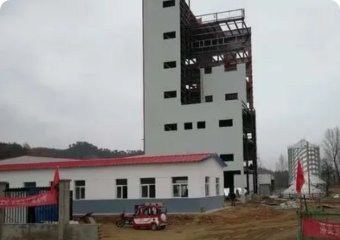

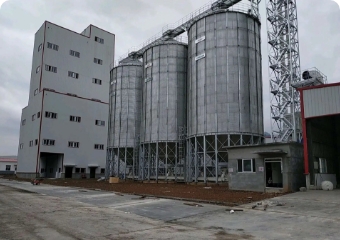

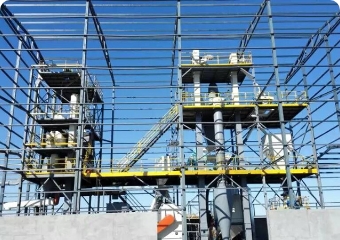

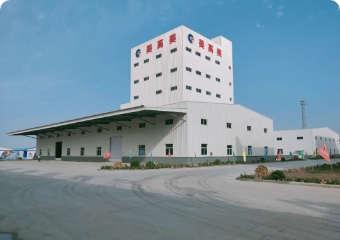

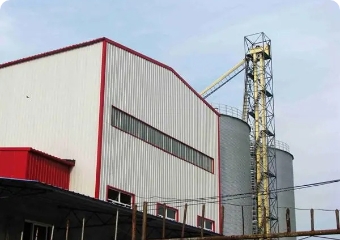

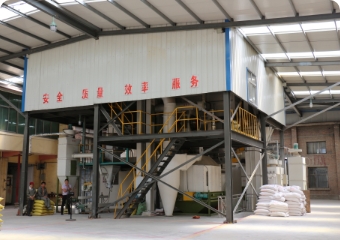

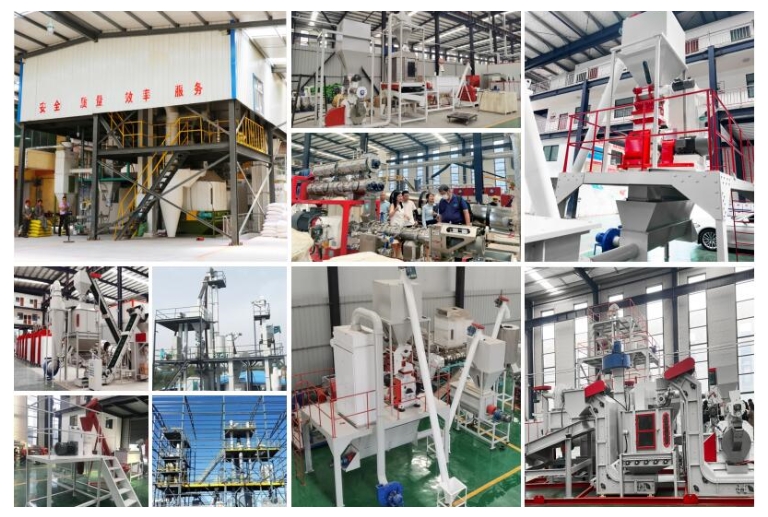

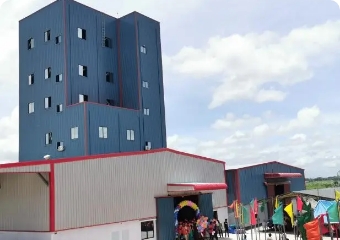

Case Of Production Line
The challenge for fish feed production lines and fish farms is how to optimize the processing of a large number of raw materials
Contact our project managers to see more cases

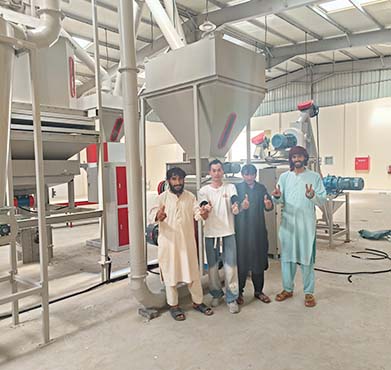

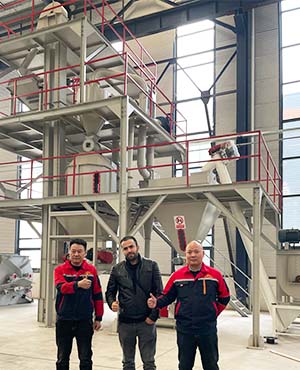

installation
300+
Clients
installation
installation
Installation service
We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance.
We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, and sample analysis to plan design, installation commissioning, and maintenance. According to customer needs, LIMA installation engineers will guide the construction of site infrastructure, equipment installation and commissioning, and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.
Get A Quote
Our Engineer Team
We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance.
engineer
Gastby
Lima Engineer
Contact me
engineer
Bill
Lima Engineer
Contact me
engineer
Segun
Lima Engineer
Contact me
engineer
Zheng
Lima Engineer
Contact me
engineer
Li
Lima Engineer
Contact me
engineer
Geng
Lima Engineer
Contact me

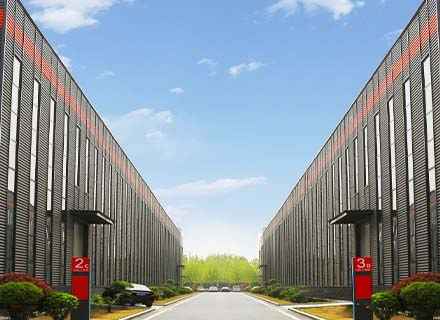

LIMA Factory
Established in 1998, Henan Lima Machinery Manufacturer Co., Ltd. is a professional feed machinery manufacturer and supplier in China. We are mainly engaged in the R&D and manufacturing of equipment such as fish feed, fish feed, livestock feed, and pet food. With 24 years of professional design production and installation experience in the feed machinery industry, and have gradually formed a complete R&D, production, sales, and service system, providing technical solutions and supporting products. At present, the marketing network of Lima Machinery has spread to more than 100 countries and regions in Africa, Asia, Europe, America, and Oceania.
LIMA
Lima
lima
lima feed machinery
lima feed machine
lima feed machines

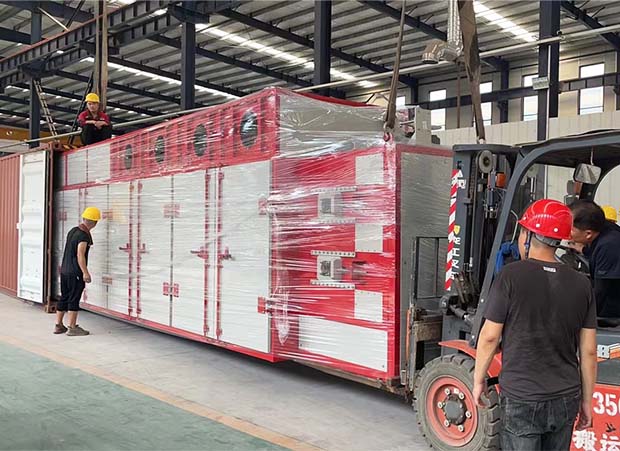

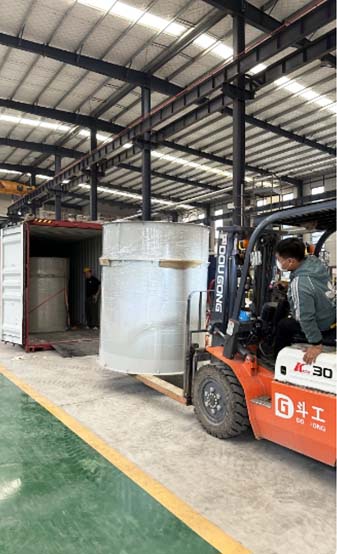

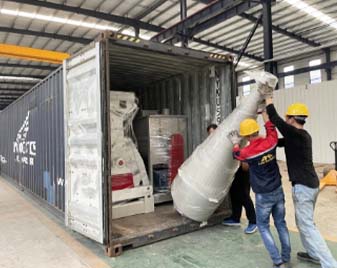

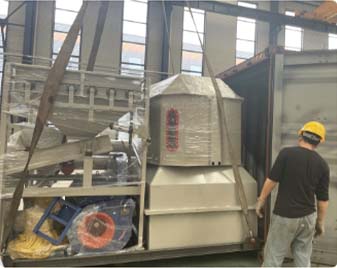

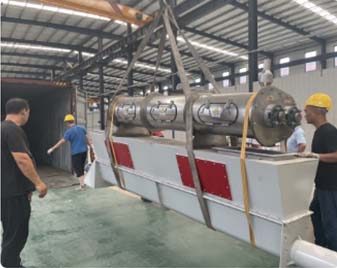

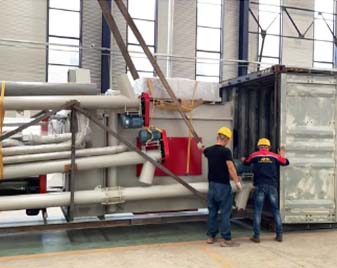

Packaging Delivery
